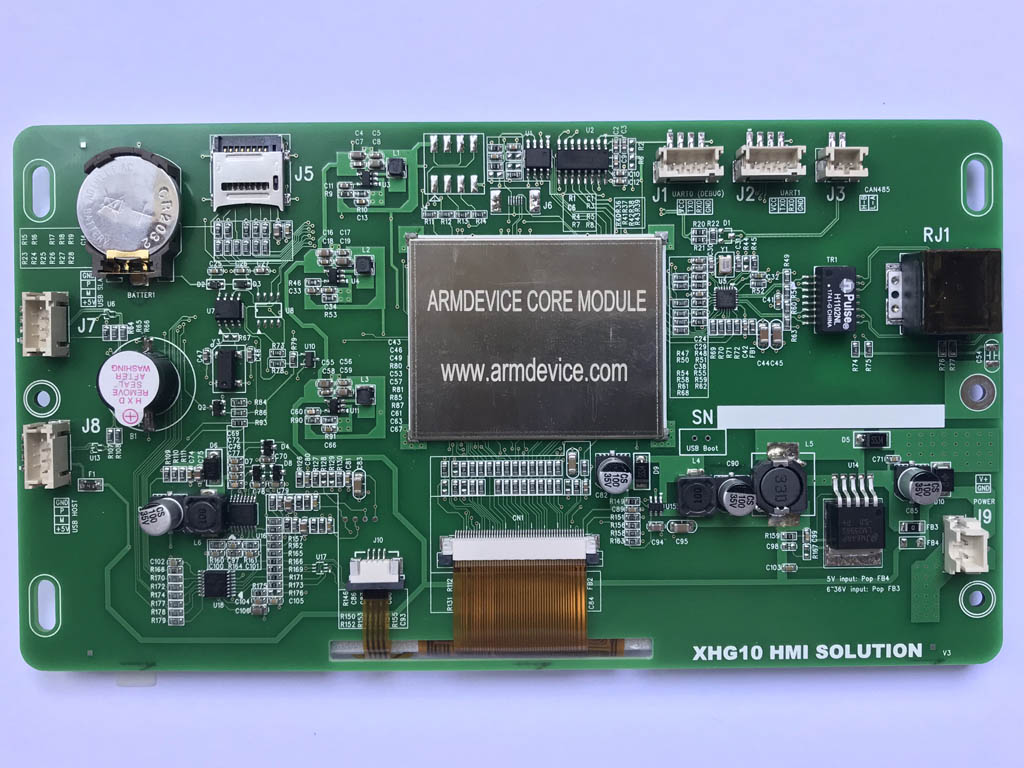

AZM-HMI977 is an economy HMI solution with Windows CE 6.0 supported.
We helped many customer using this solution to replace older and higher costs solution with Atmel/ SamSung/ TI/ Freescale/ NXP/ CirrusLogic ARM chips.

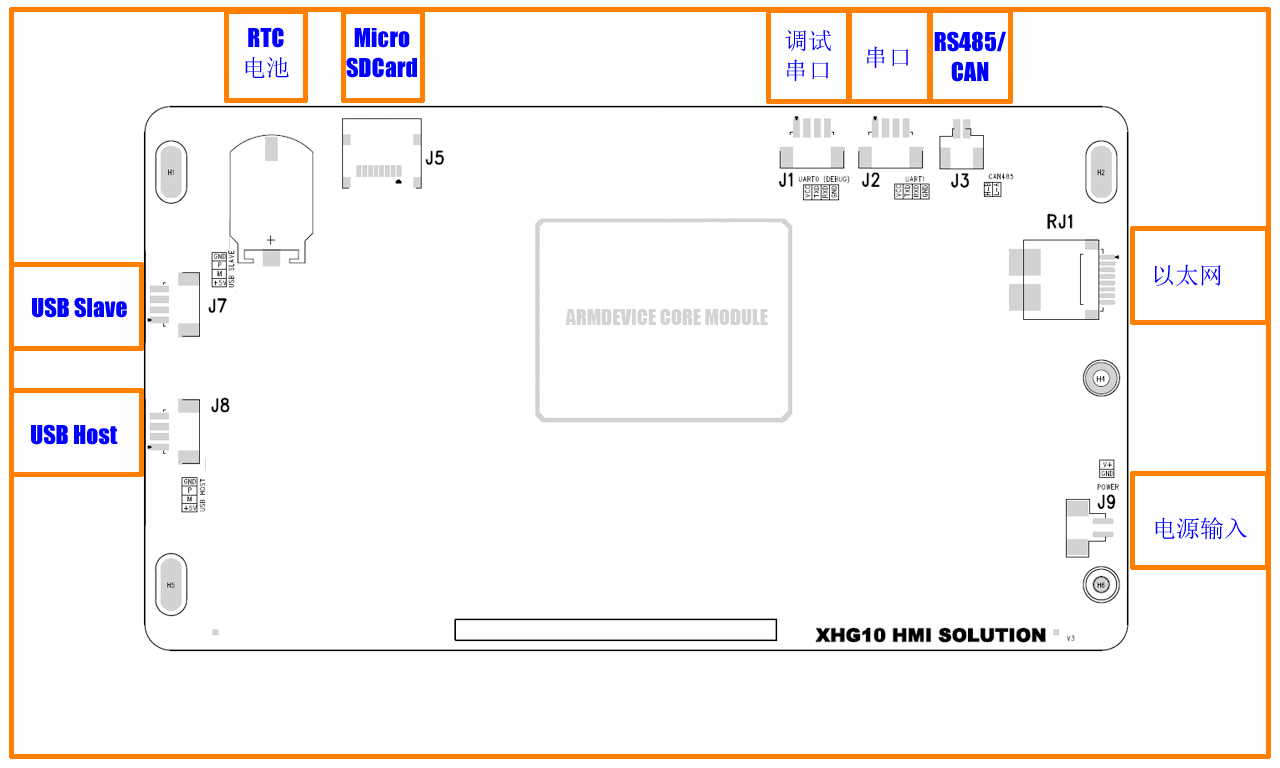

Features:
1. Full support SDHC.
2. Multibin XIP on NAND Flash.
This feature make the board boot faster and save 5M memory at least.
3. Beautiful boot logo and loading progress-bar.
4. USB Slave and USB Host.
5. 100/10 Ethernet
6. A reserved socket for ESP8266 WIFI.
7. RS232 x2, RS485/CAN x1

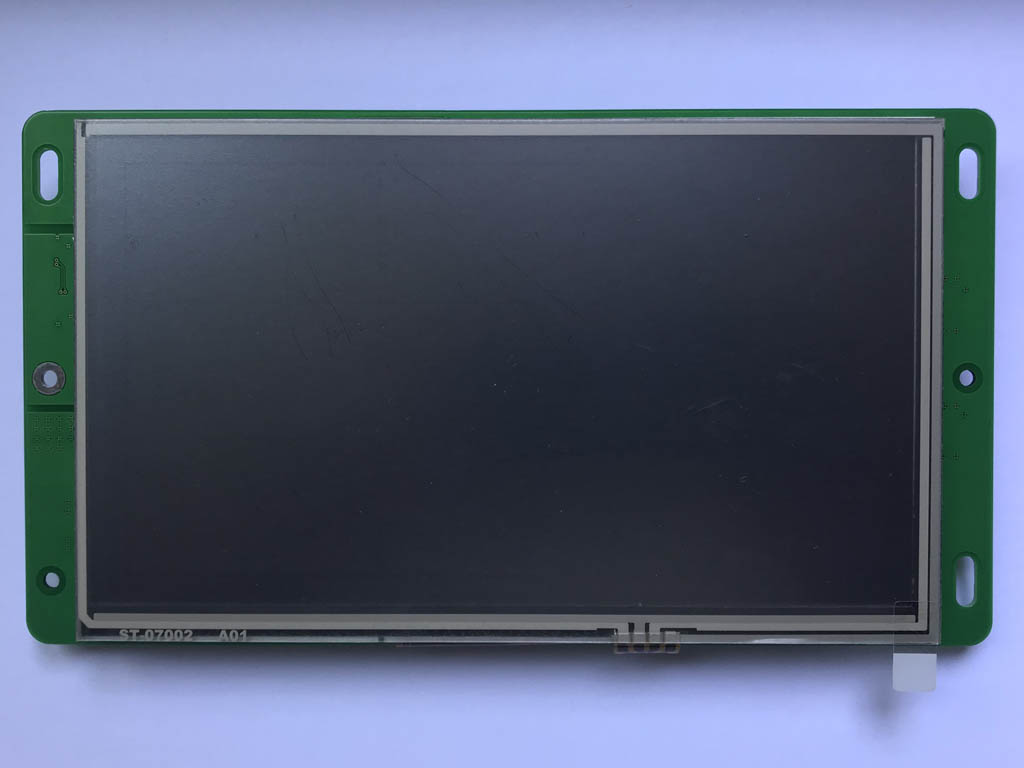

8. 7ch Hight brightness LCD(400 Nits), Support 4-wire resistive touch screen or capacitive touch screen.
Documents And BSPs
